Electromagnetic Flowmeter – Product Overview

Our Electromagnetic Flowmeters (EMF) offer accurate, reliable, and obstruction-free flow measurement for all conductive fluids. With no moving parts and negligible pressure drop, they are the ideal choice for municipal water supply, wastewater monitoring, industrial processing, and chemical dosing applications.

Key Features
  • No Moving Parts: Ensures long-term stability and reduced wear.
  • High Accuracy: ±0.5% of reading with excellent repeatability.
  • Bi-directional Flow Measurement: Suitable for forward and reverse flows.
  • Liner & Electrode Options: PTFE, rubber, or ceramic liners and stainless steel/titanium electrodes for chemical compatibility.
  • Integrated Display: Real-time local display of flow rate and totalizer.
  • Multiple Output Options: 4–20 mA, Pulse, RS485 (Modbus), HART.

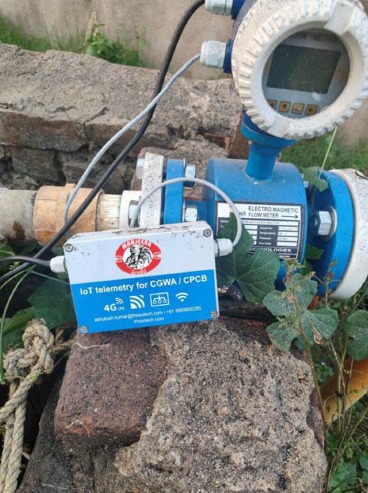

Electromagnetic Flowmeter
Technical Specifications (Typical Range)
Pipe SizeDN6 to DN2400
Accuracy±0.5% of reading
Flow Velocity Range0.03 to 10 m/s
Fluid TypeConductive liquids only (>5 µS/cm)
Output4–20 mA, Pulse, RS485 Modbus, HART
Power Supply24V DC / 230V AC
Ingress ProtectionIP65 / IP68 (submersible option)
MountingFlanged / Wafer type
Applications
  • Drinking Water & Wastewater Networks
  • Industrial Process Water
  • Irrigation and Agriculture
  • Chemical and Pharma Dosing Systems
  • Smart City Water Distribution and NRW Monitoring
📡 IoT & SCADA Integration
  • Integrated Modbus/RS485 and HART protocols
  • Real-time monitoring and diagnostics via cloud dashboard
  • Supports GSM/LoRa/NB-IoT telemetry for remote locations
✅ Why Choose Our Electromagnetic Flowmeters?
  • Superior accuracy for all conductive fluids
  • Rugged construction with no pressure loss
  • Maintenance-free design with no moving parts
  • Proven in over 1,000+ installations across India
  • Supports advanced data logging and real-time alerts
📞 💬
