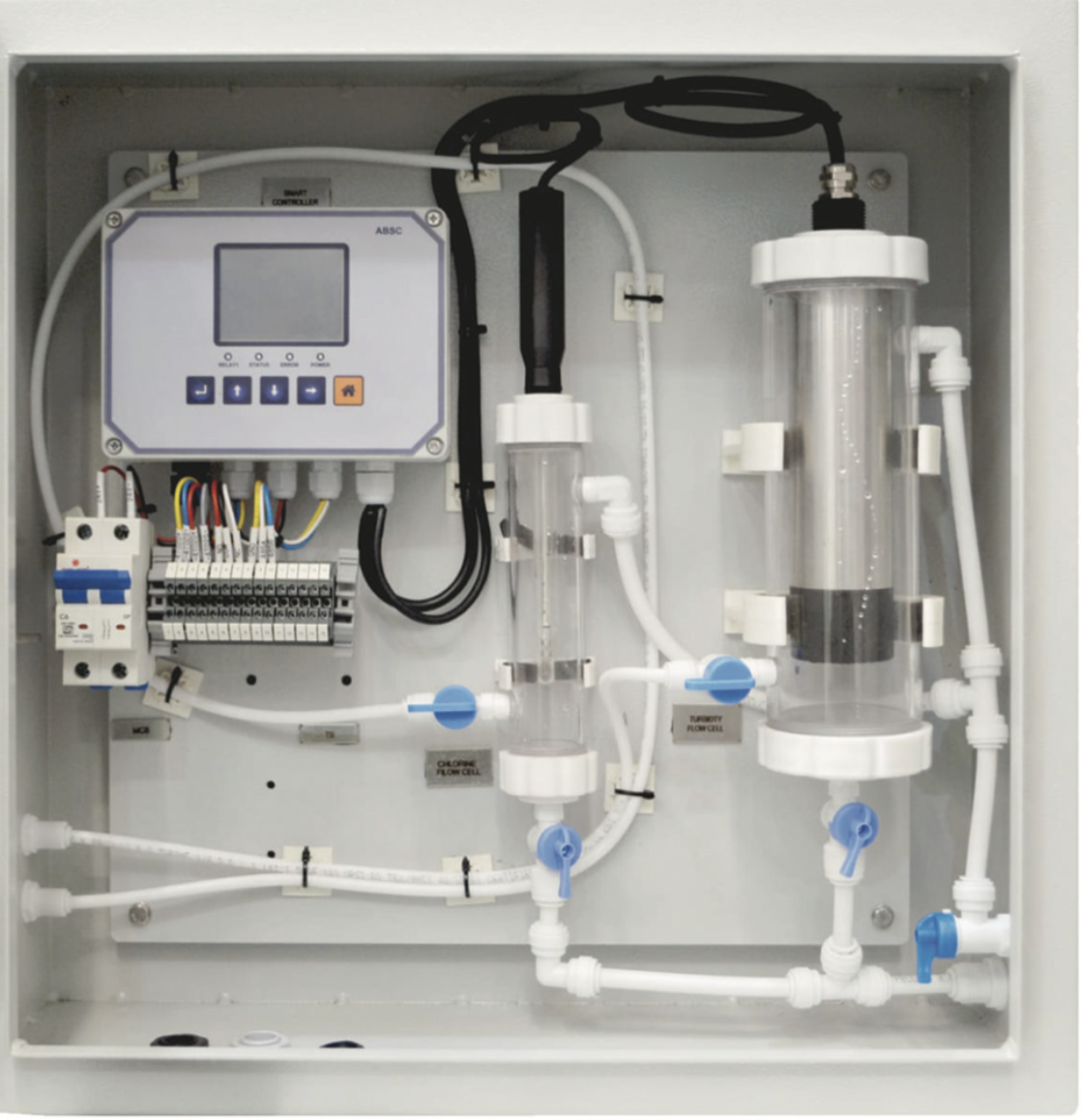

Chlorine Analyzer

The SMART ABFC chlorine sensor (non-reagent type) si used for measuring the concentration of chlorine present in sample water, such as chlorine (CI2) hypochlorous acid (HCIO), and hypochlorite ion (CIO-). The SMART ABC determines the chlorine concentration by measuring voltage corresponding to the diffusion current between the indicator and counter electrodes and by applying temperature compensation to the diffusion current.

Advantages

Our advanced monitoring and automation systems are designed to optimize your operations, reduce waste, and ensure regulatory compliance with ease. Whether you're a startup or an enterprise, we have the right solution for your needs.

1

The SMART ABFC chlorine sensor (non-reagent type) si used for measuring the concentration of chlorine present in sample water, such as chlorine (CI2) hypochlorous acid (HCIO), and hypochlorite ion (CIO-). The SMART ABC determines the chlorine concentration by measuring voltage corresponding to the diffusion current between the indicator and counter electrodes and by applying temperature compensation to the diffusion current.

2

Measuring Principle : Polarographic method using rotating electrode • Temp. Compensation : Automatically, by an integrated temperature sensor • pH Compensation : Automatic pH measurement and compensation • Size & Weight: 5.31 × 5.12 × 2 inch & 2 lb (135×130×50mm & 0.9 kg ) with Flow Cell • CE Marking : EN 61326-1:2013 Electro magnetic Compatibility EMC

3

Protection : IP 68 • Interface Modbus: RS485 • Power : 24VDC, 40mA • Digital Interface : RS485 Modbus RTU

Right Image

Usage

Free Chlorine and Total Chlorine analyzer and controllers measure the free residual chlorine (OCI- and HOCI), and the total residual chlorine (free chlorine +combined chloramines). The Pi residual chlorine analyzers are amperometric membraned sensors that bring a number of advantages over traditional colorimetric analyzers, in that they are cheaper to own with no reagants and very little maintenance (once per year). They are extremely stable and work almost anywhere you have a need to measure residual chlorine from drinking water, to pools and spas, produce washing, cooling tower disinfection and disinfection in paper and pulp industries.


    APPLICATIONS:
  • Chlorination System
  • Insertswimming Pool
  • InsertDrinking Water
  • InsertMonitoring Disinfectant dosing
  • InsertMonitoring Conditioning Agents
  • 🧪 Chlorine Analyzer – Product Overview

    Our Chlorine Analyzers are designed for precise and continuous monitoring of free or total residual chlorine in water. They help ensure effective disinfection in drinking water systems, swimming pools, industrial processes, and wastewater treatment plants.

    🔧 Key Features
    • Real-Time Monitoring: Continuous chlorine level tracking to ensure regulatory compliance.
    • Multiple Measurement Modes: Free chlorine, total chlorine, or combined chlorine options available.
    • Automatic Temperature & pH Compensation: Ensures accurate readings even with varying water conditions.
    • Low Maintenance Design: Reagent-free, membrane or amperometric sensors for simplified maintenance.
    • Easy Integration: Compatible with SCADA, PLC, and digital control systems.
    • User-Friendly Display: Backlit LCD or digital touchscreen with diagnostics and alarms.
    Chlorine Analyzer
    📊 Technical Specifications (Typical Range)
    Measuring Range0–5 mg/L (ppm), optional up to 10 mg/L
    Accuracy±0.05 mg/L or ±5% of reading
    Sensor TypeAmperometric / Membrane type
    Output4–20 mA, RS485 Modbus
    DisplayBacklit LCD / Digital Touchscreen
    Power Supply24V DC / 230V AC
    Mounting TypeWall, Panel, or Pipe Mounted
    Protection ClassIP65 / IP68 (sensor)
    📦 Applications
    • Drinking Water Treatment and Distribution
    • Swimming Pool Disinfection Control
    • Industrial Process Water Monitoring
    • Wastewater Chlorination Verification
    • Laboratory and Research Facilities
    📡 IoT & SCADA Integration
    • RS485 Modbus output for SCADA/PLC integration
    • Cloud-based analytics and data storage compatibility
    • GSM/LoRa/NB-IoT modules for remote quality monitoring
    ✅ Why Choose Our Chlorine Analyzers?
    • Reliable, real-time chlorine measurement
    • Reagent-free, low-maintenance design
    • Proven performance across hundreds of deployments
    • Suitable for both municipal and industrial use cases
    • Built-in alarms, auto-calibration prompts, and data logging
    📞 💬
